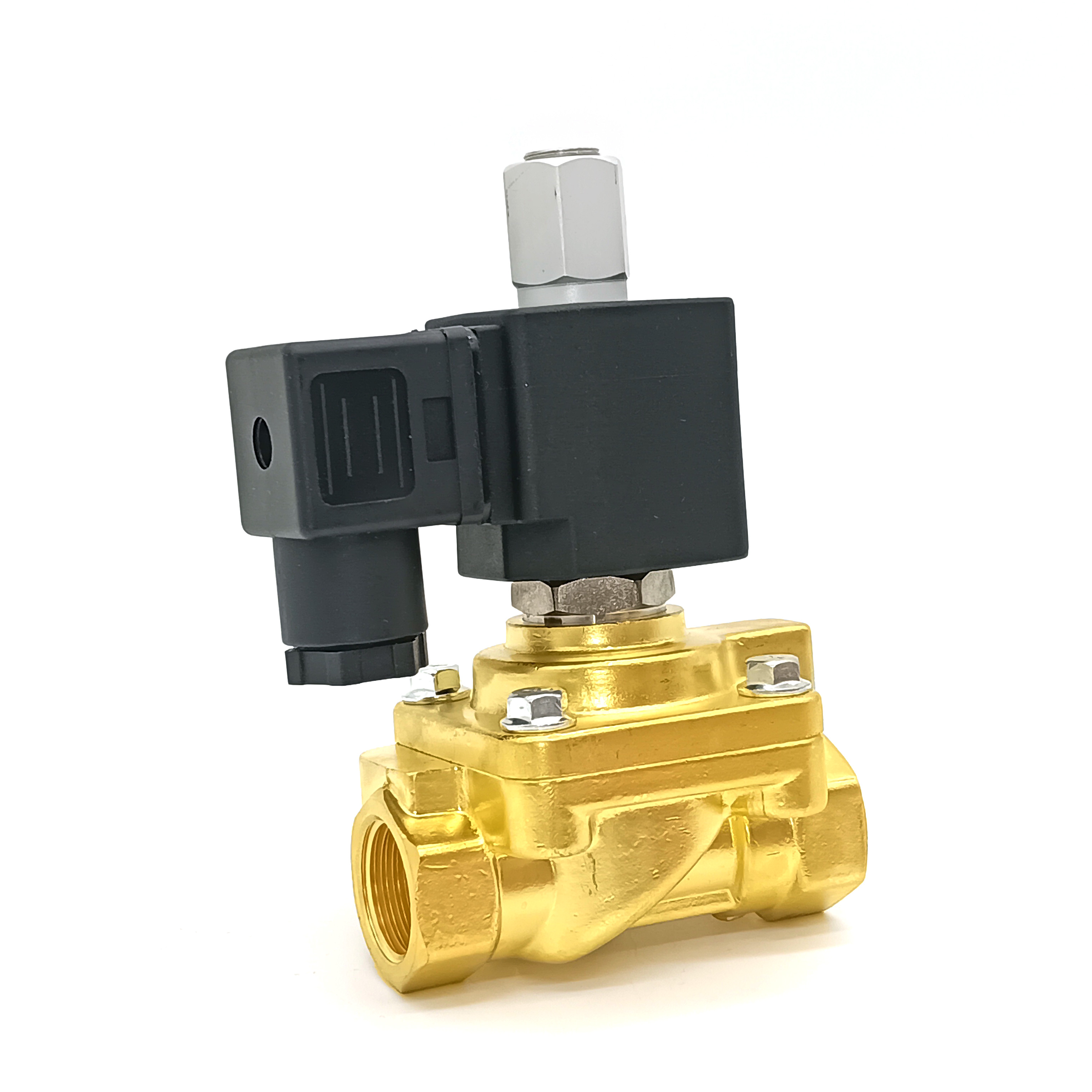

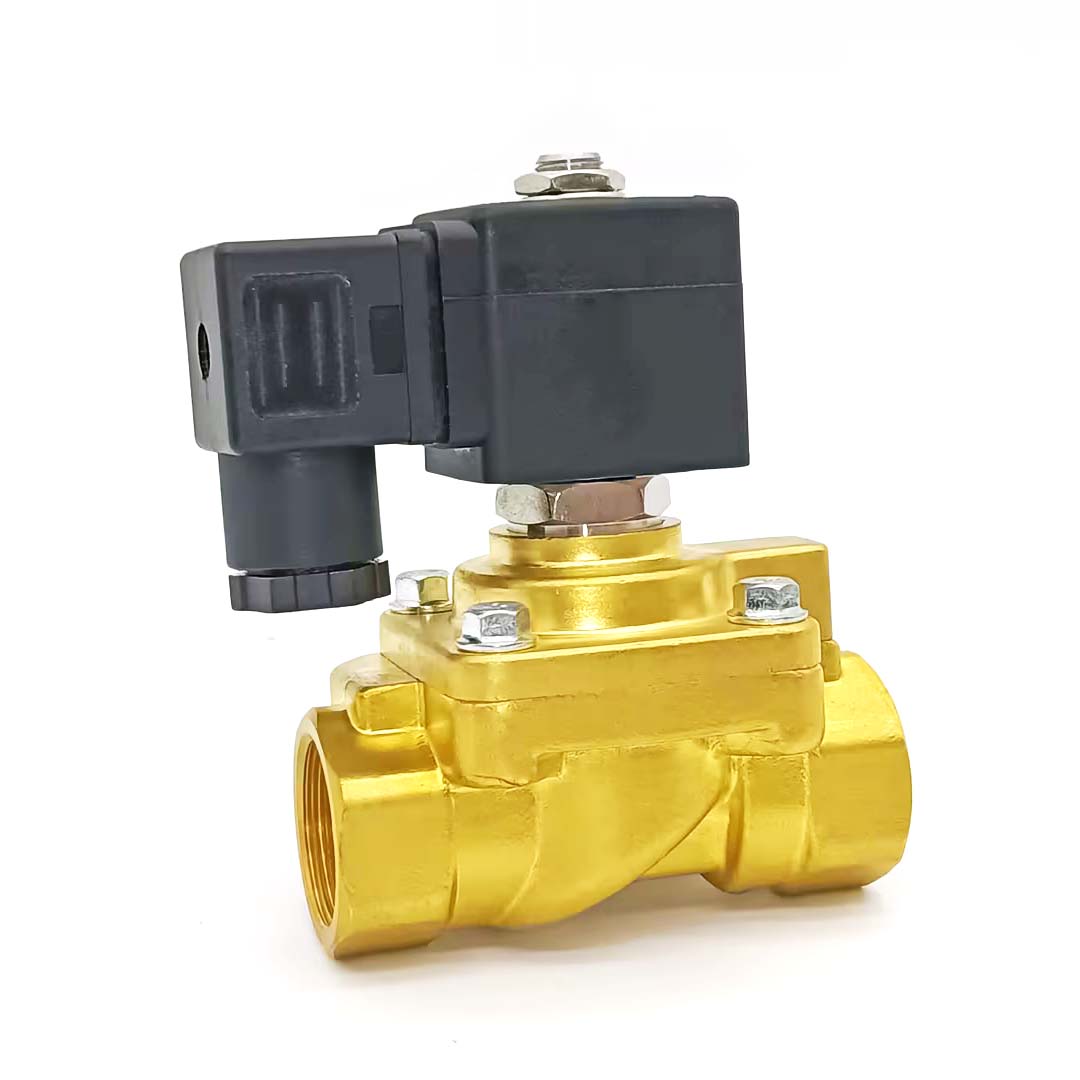

A solenoid valve is an electrically controlled valve used to control the flow of fluids such as water, gas or oil. It is a valve that uses an electric current to open or close the valve mechanism, so it can be controlled remotely and automatically.
A solenoid valve consists of a coil, a plunger, and a valve seat.
The coil is an electrical component that creates a magnetic field when current passes through it.
The plunger is a movable part inside the coil that moves up and down based on the magnetic field created by the solenoid coil, opening or closing the orifice through which the medium flows.
The valve seat is the opening through which the plunger passes.
At rest, the valve can be normally open or normally closed. In the power-off state, the normally closed valve is closed and the normally open valve is open.
The normally closed solenoid valve is very suitable for applications that require the valve to be closed for a long time, and the normally open solenoid valve is very suitable for applications that require the valve to be open for a long time, which is more energy-efficient.
Normally Closed & Normally Open
Solenoid valves are available in different designs, construction materials, and circuit functions for use in a variety of applications. They are commonly used in water treatment systems, irrigation systems, automotive, food processing, and many other industrial applications.
Options:
1. Port Size: 1/8'' to 3'', etc
2. Connection: Thread, Flange, Push-In, etc
3. Body Material: Brass, Stainless Steel, Aluminum Alloy, UPVC, CPVC, PTFE, PA, PP, POM, etc
4. Seal Material: NBR, EPDM, FKM, FFKM, PTFE, PEEK, Silicone, etc
5. Working Medium: Water, Air, Steam, Gas, Liquid, Chemical, Refrigerant, etc
6. Function: 2 way, 3 way or Multi ways; normally closed or normally open, etc
7. Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC, other voltages can be customzied
8. Body Material: Brass Solenoid Valve, Stainless Steel Solenoid Valve, Plastic Solenoid Valve, etc
