Steam Iron Solenoid Valve
As the core actuator of the fluid control system, the steam solenoid valve plays a key role in steam distribution, thermal balance and process temperature control. It accurately adjusts the steam flow through electrical signals and is widely used in central air conditioning, industrial heat treatment, energy management and process production. High-quality steam solenoid valves must meet the three core requirements of high temperature tolerance, sealing reliability and response accuracy to adapt to the special physical properties of the steam medium. In this article, we mainly introduce the two solenoid valves 7000 and 9934.
Technology and Features
- High temperature tolerance： Using VITON diaphragm seal (resistant to 150℃)
- Lightweight structure: Small size and light weight, suitable for miniaturized equipment (such as portable steam irons)
- Low maintenance cost: Self-compensating sealing technology reduces maintenance frequency and reduces downtime losses
Specification and Ordering Code
|
Model |

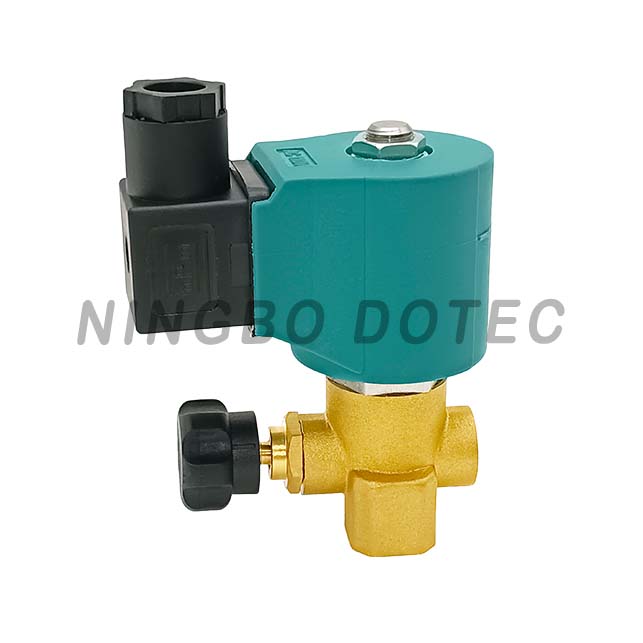

7000 |
|
Port Size |
1/4 '' |
|
Orifice Size |
2mm, 3mm |
|
Working Medium |
Steam, Hot Water |
|
Operation |
Direct Acting |
|
Function |
2Way Normally Closed |
|
Working Pressure |
0 to 10 bar |
|
Body Material |
Brass |
|
Seal Material |
FKM |
|
Temperature |
-30~150℃ |
|
Voltage |
12VDC, 24VDC, 24VAC, 110VAC, 220VAC |
|
Model |

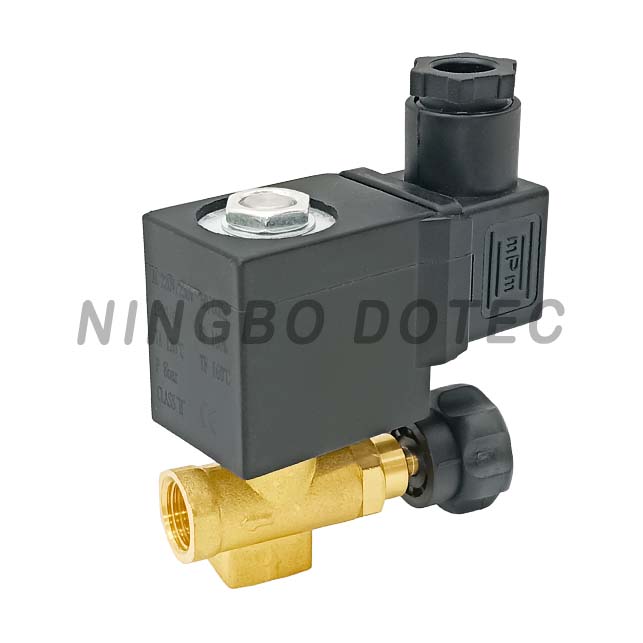

9934 |
|
Port Size |
1/4 '' |
|
Orifice Size |
2mm, 3mm |
|
Working Medium |
Steam, Hot Water |
|
Operation |
Direct Acting |
|
Function |
2Way Normally Closed |
|
Working Pressure |
0 to 10 bar |
|
Body Material |
Brass |
|
Seal Material |
FKM |
|
Temperature |
-20~160℃ |
|
Voltage |
12VDC, 24VDC, 24VAC, 110VAC, 220VAC |
Application:
Widely used in high-temperature steam systems such as steam irons, industrial ironing equipment, dryers, etc., to achieve automatic temperature control and energy-saving operation
The steam iron solenoid valve is an electrical component that opens when current is applied to it. If the valve in your steam iron is playing up become faulty, look no further DOTEC are here to help. With this replacement fitted to your steam iron, you'll be back in action in no time.
